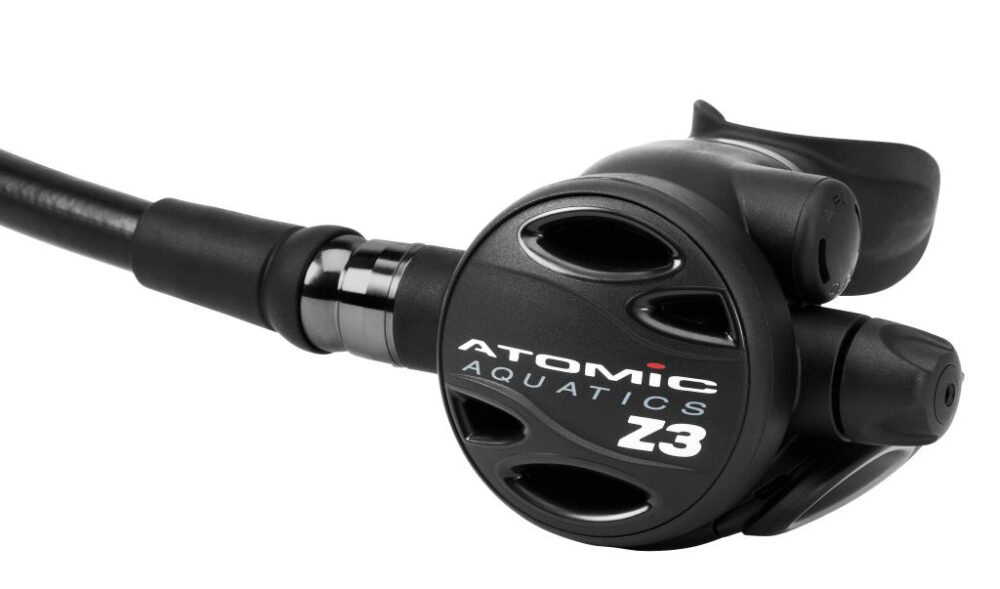

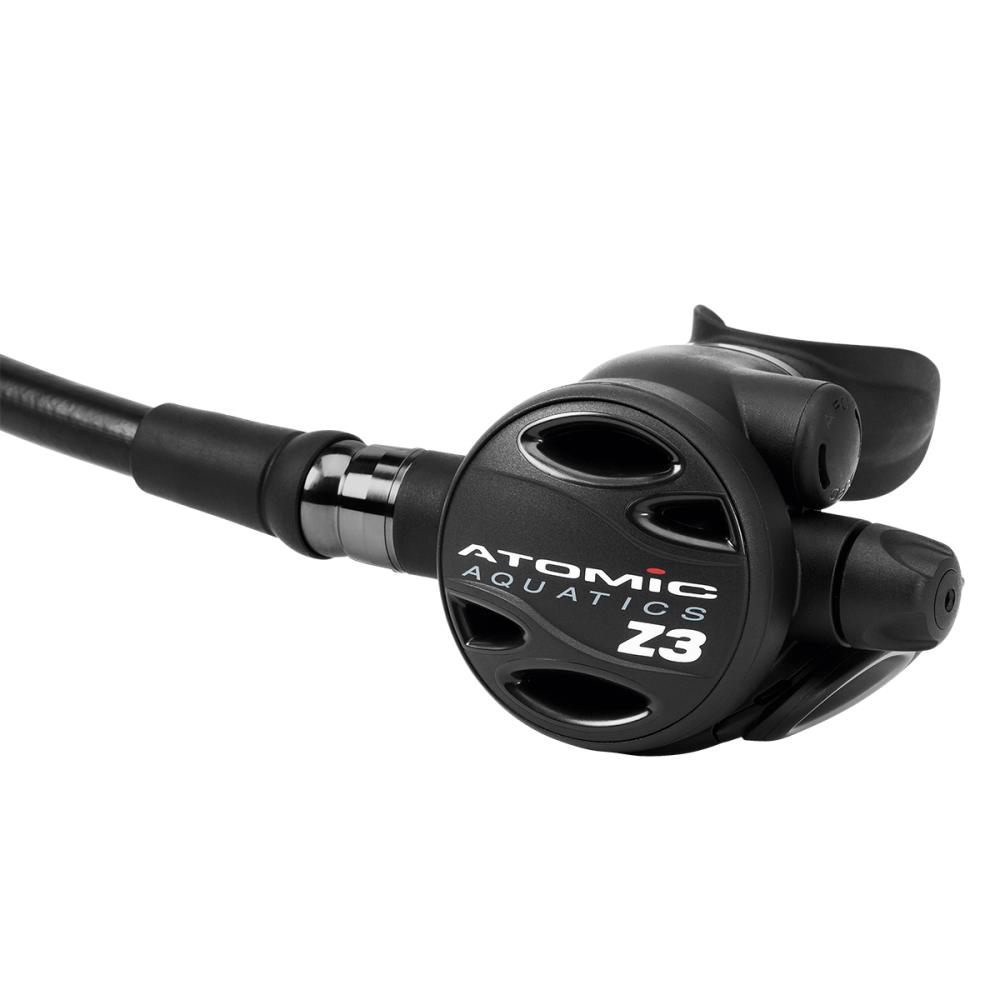

The Z3 is the most affordable regulator in the Atomic Aquatics line. It uses zirconium-plated brass with titanium second stage components to deliver the same breathing design as the rest of the range, in an all-black finish that can be accented with an optional colour kit.

Main features

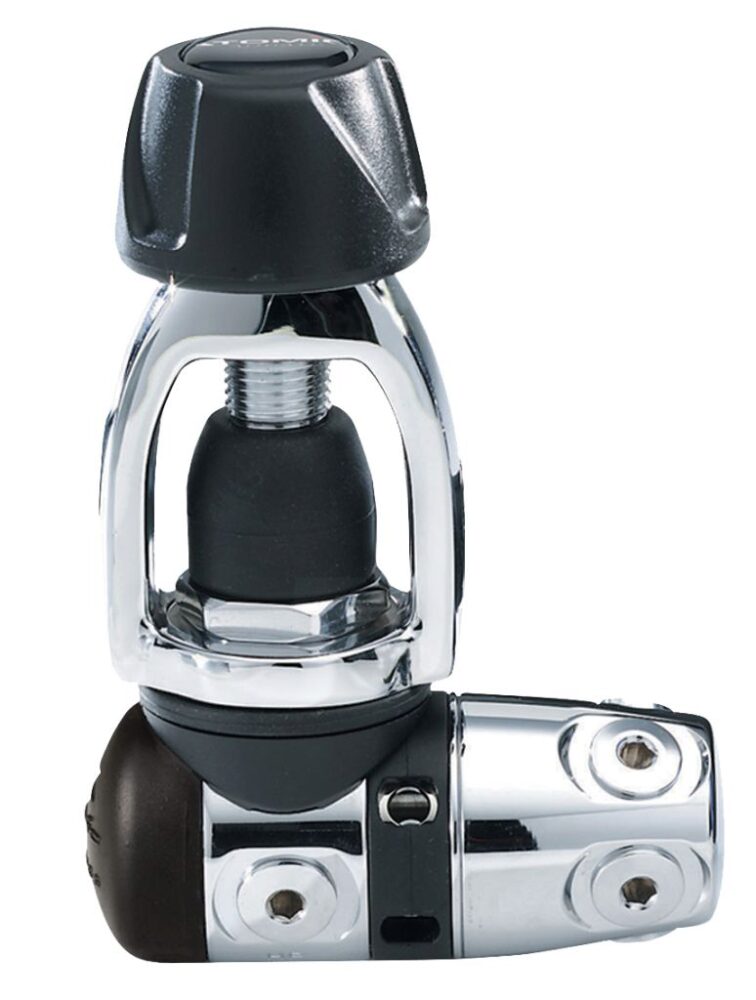

• First stage in chrome-plated brass and 316 stainless steel, with Atomic's balanced Jet Seat high-flow piston and a fixed port cap.
• Second stage in precision-machined brass with zirconium plating, with titanium components.
• Automatic Flow Control (AFC) adjusts the venturi effect as depth changes, so there is nothing to set during the dive. A Rapid Adjustment Knob is there for special situations such as surf entries or octopus use.
• Patented brass Comfort Swivel with black PVD coating lets the second stage turn through 30° without the hose pulling, binding or kinking.
• Patented titanium Seat Saving Dynamic Orifice protects the seat in storage and helps the second stage keep its factory tuning.
• Pneumatically balanced poppet with a high-flow case and lever design, for easy breathing at all depths and tank pressures.
• Dual material second stage cover: the whole front works as the purge.
• Elliptical exhaust valve that reduces exhalation effort at depth.
• Dual silicone comfort fit mouthpiece with tear-resistant bite tabs.
• Optional Z3 colour kit (sold separately).

Technical specifications

• Weight: 2.6 pounds (yoke version)
• First stage ports: 2 HP fixed, 7 LP on a fixed cap
• Nitrox: approved for non-dedicated EAN use with mixtures up to 40%
• Materials: chrome-plated brass and 316 stainless steel first stage; zirconium-plated brass and titanium second stage
• Sealing: optional factory-sealed first stage, closed to silt and sand (the sealed options below)

Service and warranty

Atomic Aquatics sets the service interval for this regulator at 2 years, or sooner with heavy use (see Atomic's warranty terms for the dive limit). It carries Atomic's limited lifetime warranty for the original owner; mouthpieces, hoses, O-rings, filters and valve seats are covered for 2 years. The warranty applies to regulators bought from an authorized Atomic Aquatics dealer and registered with Atomic within 30 days of purchase.

Options on this listing

First stage connection: Yoke; DIN; Yoke, sealed; DIN, sealed. This page is the Yoke, sealed version (Atomic Aquatics part number 03-0090-6P).
