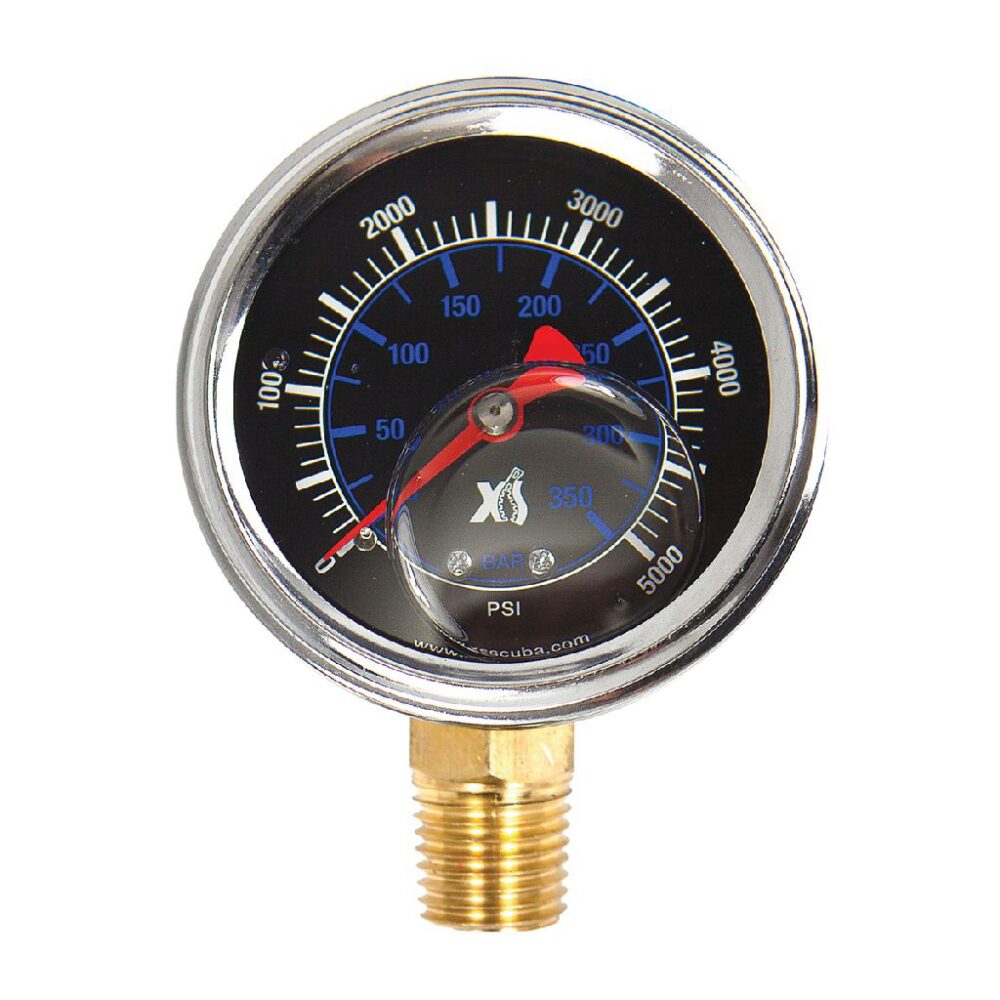

The dual-scale gauge used on the XS Scuba Fill Checkers (AC360 and AC365) and the Cylinder Equalizer (AC366). It is for topside use only and must not be submerged.

Features and specifications

• This is the gauge used on the Fill Checkers, AC360 and AC365, as well as the Cylinder Equalizer AC366.
• Dual scale: 0 to 5000 psi and 0 to 350 bar
• 2.75 in (69.8 mm) diameter
• 1/4” male NPT thread
• Shock resistant housing
• For topside use only - do not submerge
• Gauge boot not included (p/n GP17)
• This gauge boot is custom fitted for the GB01 HP Gauge. It is not included with the gauge. It is a separate add-on item.
• Protects the gauge from mild impact
• Silicone compound
• Includes hole in top for over-pressure plug
• Note: Not intended for compressor use. Since it is not fluid-filled, the vibration of the compressor will cause the needle to bounce, making it difficult to read.

Options on this listing

XS Scuba part number GB01.
