SERVICE AND WARRANTY

DIVE UP TO 3 YEARS OR 300 DIVES WITHOUT REQUIRED SERVICING

Divers deeply admire many exclusive features of Atomic second stages that make diving easier. One of the most acclaimed is the Atomic Comfort Swivel which allows 30° rotational movement without hose binding or kinking. The T3 Comfort Swivel is all-Titanium with black PVD coating for the highest level of corrosion-resistance you can take in the ocean. Once you dive more comfortably with it, you’ll wonder why no one else ever thought of it.


SIGNATURE ELITE MATERIALS & PERFORMANCE
The TFX is fabricated with many iconic Atomic Aquatics materials and performance features:

All-Titanium First and Second Stage metal components
Seat Saving Dynamic Orifice
Low-friction cap at the cam surface
Venturi Nozzle gear-driven tuning switch
Variable Lift Cam
New 4X Yoke connection first stage – one turn secures it to the tank
Comfort Swivel Hose now with less friction and smoother movement

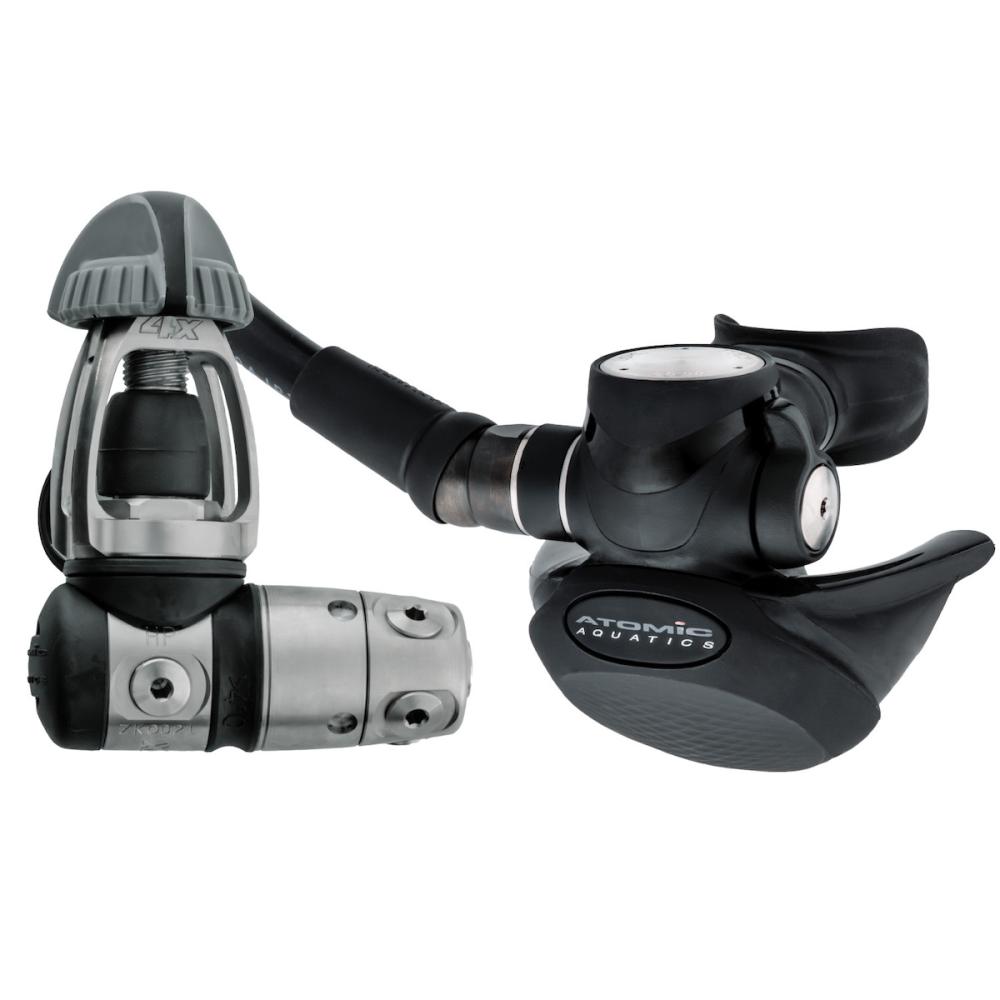

TFX REGULATOR
FRONT EXHAUST VALVE POSITIONING
Atomic engineers deconstructed every component of previous front exhaust regulator designs to reevaluate and reimagine function and performance. The genesis of the unique Atomic TFX design lies in positioning the exhaust valve in the center of the inhalation diaphragm and mounting both in the front of the regulator, which provides enhanced breathing performance and superior dryness not possible in a conventional design.

IMPROVED PRESSURE DIFFERENTIAL & WATER COLUMN EFFECT
In extreme diving positions, like looking upwards, the TFX exhaust valve and diaphragm are positioned at exactly at the same level with no pressure differential. Any water will collect at the exhaust valve and be easily exhaled with each breath. The water column effect is minimal in the TFX, compared to the large water column effect in the conventional regulator, which will become more difficult to inhale since the diaphragm is higher than the mouthpiece. The TFX is much less sensitive to different attitudes encountered during diving.

CASE ARCHITECTURE & EXHAUST DEFLECTION
The radical TFX design created engineering and design challenges that resulted in fresh case architecture – a complex series of fluid and natural geometries that integrate seamlessly with the narrow-width case and front cover. These unique forms were truly necessitated by function, such as finding an innovative way to route the exhaust from the front of the regulator to the rear. Form follows function with the sweeping flexible front purge cover and extended soft silicone rubber exhaust deflectors that route bubbles away from and behind the diver’s field of view.
