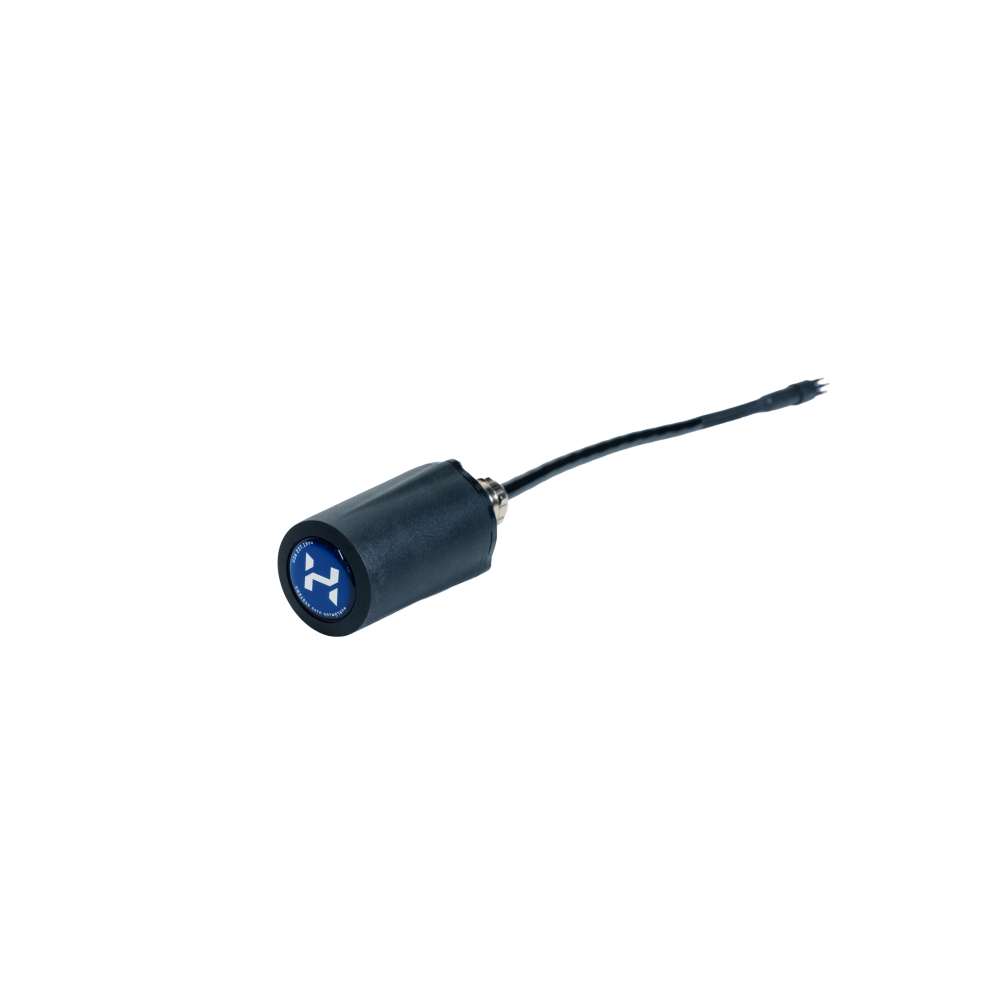

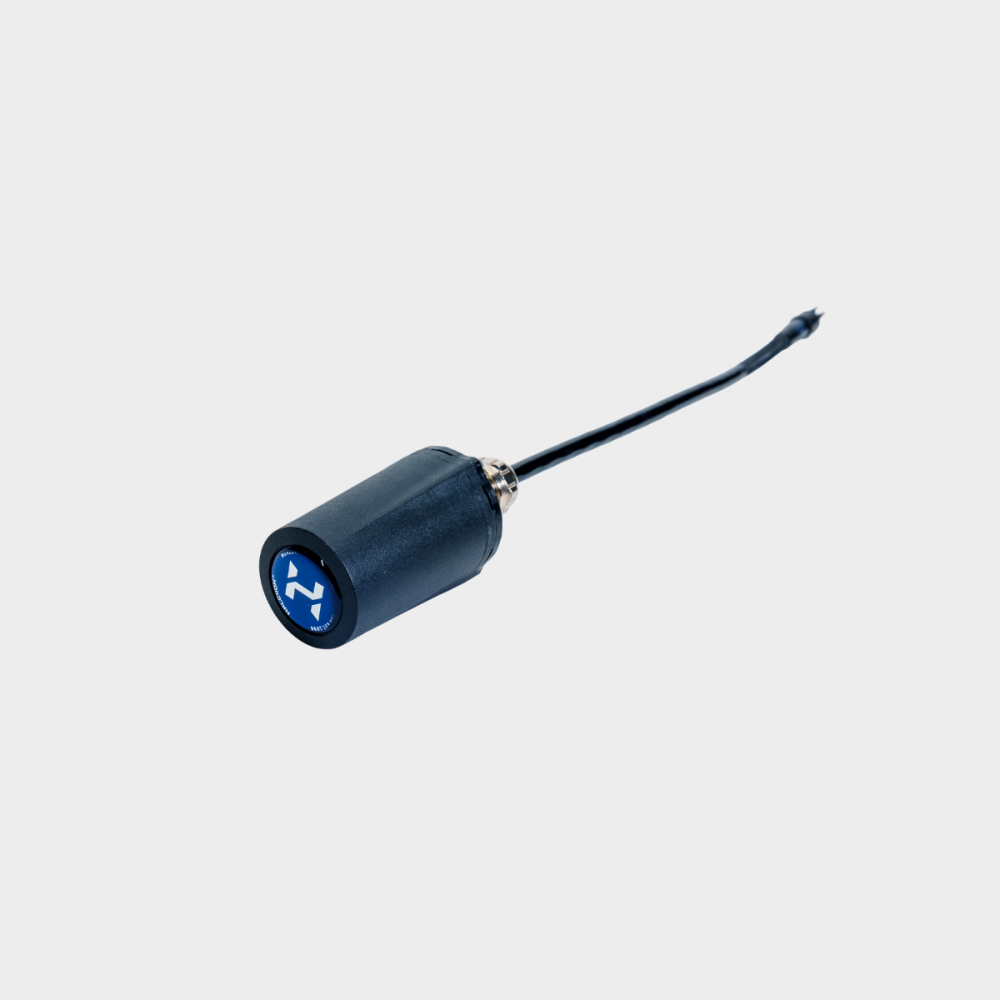

Halcyon Symbios CCR Pod

Overview

The Halcyon Symbios CCR Pod gives a compatible rebreather a wireless link to the Symbios Silver Handset and the Symbios HUD. CCR data, including a pO? reading for each connected oxygen sensor, then appears on your Symbios display. Pods are made for analog and CAN bus rebreather systems, with Fischer, 4-pin and 5-pin connections, so pick the connector that matches your CCR.

Key Features

• Wireless CCR data: Sends rebreather data in real time to the Symbios Silver Handset and HUD, which supports a cleaner equipment setup.
• Individual cell readings: You see a separate pO? reading for each connected oxygen sensor.
• One-second transmission: The pod refreshes its CCR data once every second.
• Analog and CAN bus options: Versions are made for compatible analog rebreathers and for CAN bus systems.
• Connector choices: Connections come in Fischer, 4-pin and 5-pin types, in male and female versions, to suit different rebreather configurations.
• Handset, HUD or both: The pod can feed a Symbios Silver Handset, a Symbios HUD, or the two together.
• Automatic sleep and standby: The Fischer and AK4 analog versions go to sleep once sensor output has been stable for more than 15 minutes. The AK5 CAN bus version switches on through its integrated water contacts and drops to standby when they are dry.

Specifications

• Compatible displays: Symbios Silver Handset and Symbios HUD
• Transmission: Wireless magnetic transmission
• Transmission frequency: 125 kHz
• Transmission interval: Once per second
• Transmission range: Up to 90 cm / 35 in
• Dimensions: 90 mm / 3.5 in long × 40 mm / 1.6 in diameter
• Weight: Approximately 110 g / 3.9 oz
• Systems: Available for analog and CAN bus rebreather systems
• Fischer and AK4 analog versions, connector: 7-pin Fischer or AK4
• Fischer and AK4 analog versions, sensors: Connects to up to three analog pO? sensors
• Fischer and AK4 analog versions, compatible sensor output: 8–15 mV at 0.21 bar pO?
• Fischer and AK4 analog versions, battery: CR123 lithium
• Fischer and AK4 analog versions, battery life: Up to 200 diving hours
• Fischer and AK4 analog versions, standby time: Up to one year
• Fischer and AK4 analog versions, sleep mode: Automatically enters sleep mode after more than 15 minutes of stable sensor output
• AK5 CAN bus version, connector: AK5, typically connected through the CCR's HUD port
• AK5 CAN bus version, power: Powered by the CCR head battery
• AK5 CAN bus version, required CAN bus supply voltage: 3.3–4.3 V
• AK5 CAN bus version, activation: Integrated water contacts, with standby mode when the contacts are dry
• AK5 CAN bus version, data: Wirelessly transmits the pO? reading from each cell

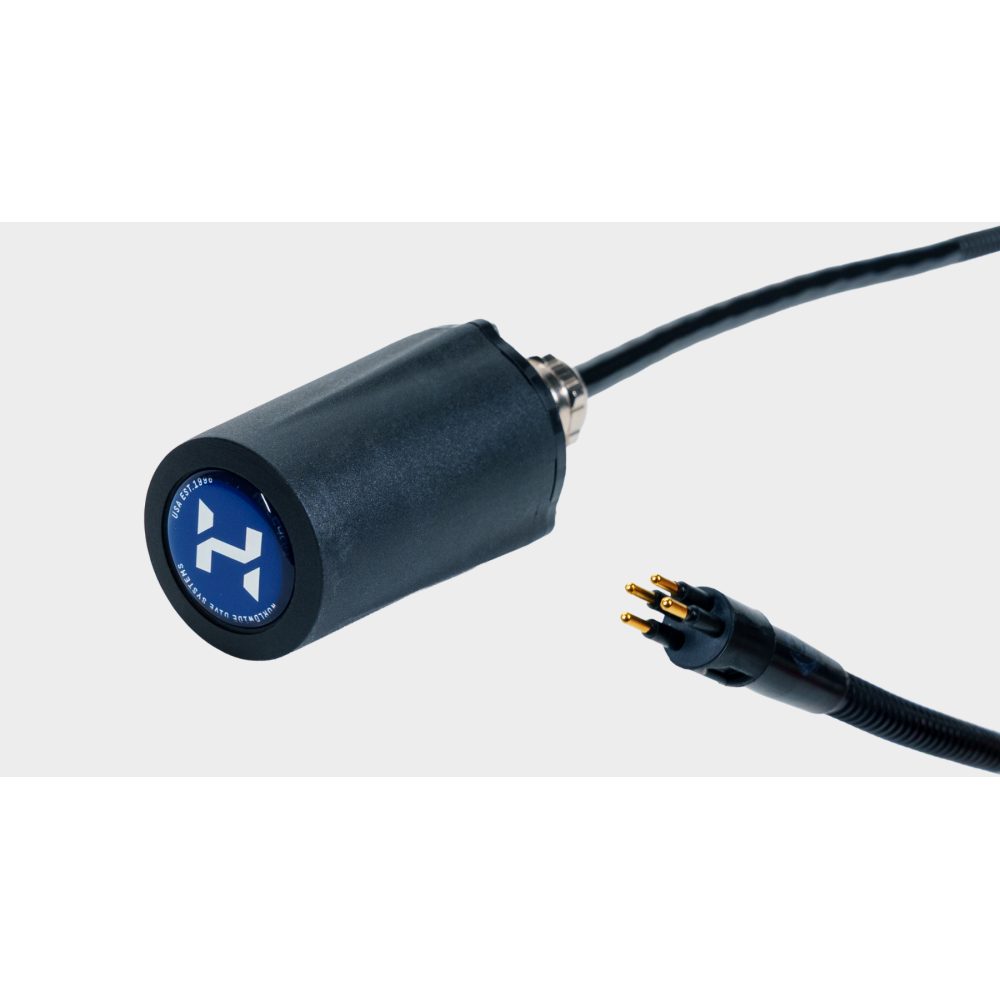

• This listing: Connection: 7-pin Fischer
• Halcyon part number: 80.300.001

Compatibility and Notes

• For compatible rebreathers only. Pick the pod with the connector made for your CCR.
• Compatible displays are the Symbios Silver Handset and the Symbios HUD.
• Fischer and AK4 analog versions: compatible sensor output is 8–15 mV at 0.21 bar pO?. They are compatible with Halcyon GREENFLASH optical pO? sensors set to analog mode.
• AK5 CAN bus version: requires a CAN bus supply voltage of 3.3–4.3 V and is powered by the CCR head battery.

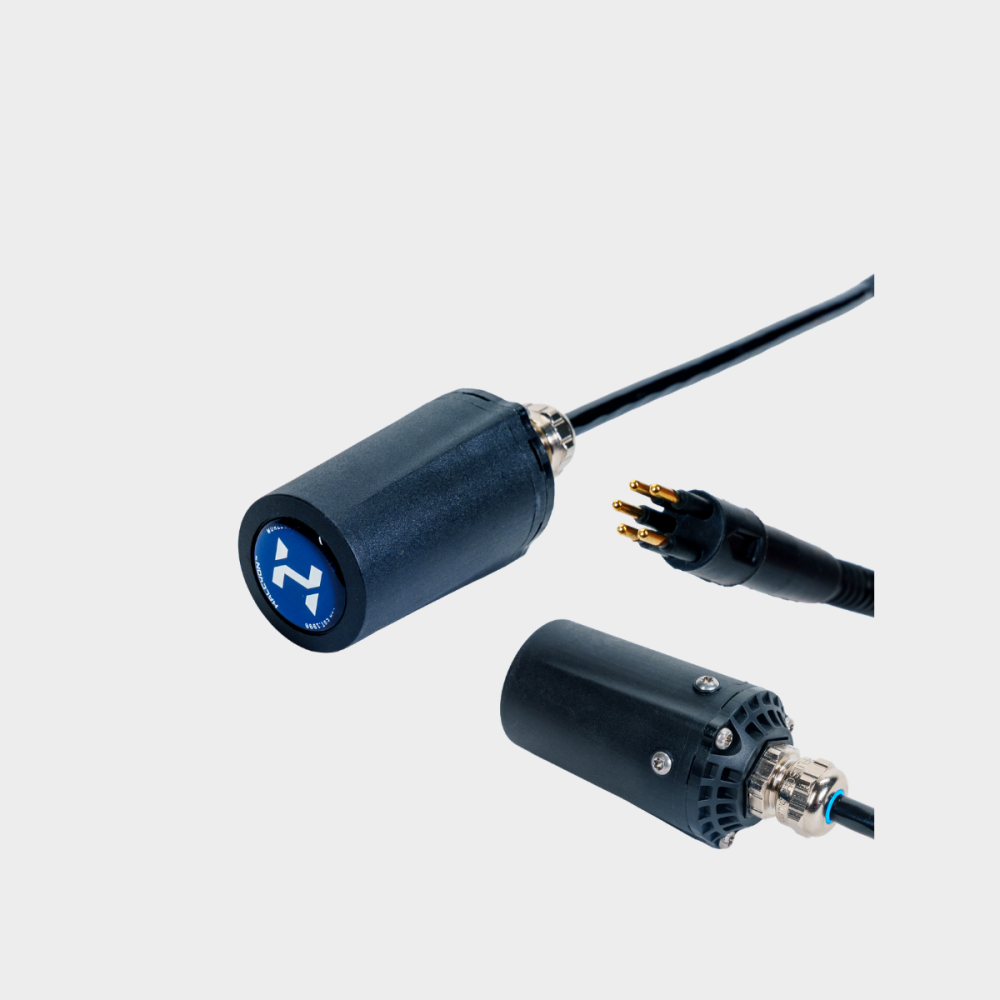

• Halcyon lists these connection options: 7-pin Fischer, 4-pin male, 4-pin female, 5-pin male and 5-pin female.
• Halcyon publishes a product manual for the CCR Pod.

Sold separately: Symbios Silver Handset Computer, Symbios HUD Dive Computer.
